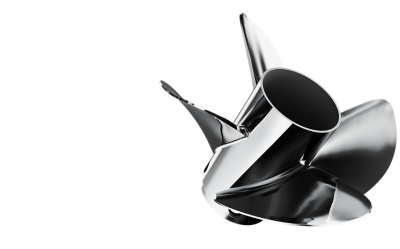

The Mercury Racing® Ventera propeller is designed to handle big outboard horsepower on the fastest high-performance center consoles, day cruisers and bay boats.
Exclusive to the Mercury Racing Profile Series, this four-blade propeller is engineered specifically to carry more load with greater efficiency at high speeds and in semi-surfacing installations. The Ventera features an increased blade diameter of 15" and a new blade thickness curve to handle more power without sacrificing performance.
The Mercury Racing Ventera propeller is available in 18 to 27.5 pitch in half-inch increments for precise tuning of any application. Each prop is hand finished and zero-balanced by Mercury Racing propeller artisans. Choose the hand-finished performance of a Mercury Racing Pro Finished® model or step up to the blue printed perfection of a Mercury Racing Lab Finished® propeller.
The Flo-Torq HD modular hub kit is available for boats running over 65 mph.
ENGINE TYPE
OUTBOARD AND STERNDRIVE
APPLICATION
CENTER CONSOLE, BAY, MULTI-SPECIES V-BOTTOM STERNDRIVE
SPEED
55-95 MPH
HP RANGE
Up to 500HP OUTBOARD, UP TO 600HP STERNDRIVE
BLADES
4
FINISH
PRO, LAB, LAB SATIN
DIAMETER
15"
PITCH RANGE
18" TO 27.5"
VIEW PART NUMBERS
Ventera-Prop-Sell-Sheet.pdf
2.3 MBDOWNLOAD
DIAMETER
15"
PITCH RANGE
18" TO 27.5"
ROTATION
RH & LH
FINISH
PRO, LAB, LAB SATIN
VIEW PART NUMBERS
PRODUCT DETAILS
|
PART NUMBER |
PITCH |
DIAMETER |
ROTATION |
FINISH |
|---|---|---|---|---|
| 8M0214742 | 19" | 15" | RH | LAB |
| 8M0214743 | 19" | 15" | LH | LAB |
| 8M0214744 | 20" | 15" | RH | LAB |
| 8M0214745 | 20" | 15" | LH | LAB |
| 8M0214746 | 21" | 15" | RH | LAB |
| 8M0214747 | 21" | 15" | LH | LAB |
| 8M0214748 | 22" | 15" | RH | LAB |
| 8M0214749 | 22" | 15" | LH | LAB |
| 8M0214750 | 23" | 15" | RH | LAB |
| 8M0214751 | 23" | 15" | LH | LAB |
| 8M0214752 | 24" | 15" | RH | LAB |
| 8M0214753 | 24" | 15" | LH | LAB |
| 8M0214754 | 25" | 15" | RH | LAB |
| 8M0214755 | 25" | 15" | LH | LAB |
| 8M0173942 | 26.5" | 15" | RH | LAB |
| 8M0173943 | 26.5" | 15" | LH | LAB |
| 8M0173940 | 26" | 15" | RH | LAB |
| 8M0173941 | 26" | 15" | LH | LAB |
| 8M0173946 | 27.5" | 15" | RH | LAB |
| 8M0173947 | 27.5" | 15" | LH | LAB |
| 8M0173944 | 27" | 15" | RH | LAB |
| 8M0173945 | 27" | 15" | LH | LAB |
| 8M0214756 | 23" | 15" | RH | LAB SATIN |
| 8M0214757 | 23" | 15" | LH | LAB SATIN |
| 8M0214760 | 24.5" | 15" | RH | LAB SATIN |
| 8M0214761 | 24.5" | 15" | LH | LAB SATIN |
| 8M0214758 | 24" | 15" | RH | LAB SATIN |
| 8M0214759 | 24" | 15" | LH | LAB SATIN |
| 8M0214764 | 25.5" | 15" | RH | LAB SATIN |
| 8M0214765 | 25.5" | 15" | LH | LAB SATIN |
| 8M0214762 | 25" | 15" | RH | LAB SATIN |
| 8M0214763 | 25" | 15" | LH | LAB SATIN |
| 8M0173950 | 26.5" | 15" | LH | LAB SATIN |
| 8M0173951 | 26.5" | 15" | RH | LAB SATIN |
| 8M0173948 | 26" | 15" | LH | LAB SATIN |
| 8M0173949 | 26" | 15" | RH | LAB SATIN |
| 8M0173954 | 27.5" | 15" | LH | LAB SATIN |
| 8M0173955 | 27.5" | 15" | RH | LAB SATIN |
| 8M0173952 | 27" | 15" | LH | LAB SATIN |
| 8M0173953 | 27" | 15" | RH | LAB SATIN |
| 8M0214712 | 18.5" | 15" | RH | PRO |
| 8M0214713 | 18.5" | 15" | LH | PRO |
| 8M0214710 | 18" | 15" | RH | PRO |
| 8M0214711 | 18" | 15" | LH | PRO |
| 8M0214716 | 19.5" | 15" | RH | PRO |
| 8M0214717 | 19.5" | 15" | LH | PRO |
| 8M0214714 | 19" | 15" | RH | PRO |
| 8M0214715 | 19" | 15" | LH | PRO |
| 8M0214720 | 20.5" | 15" | RH | PRO |
| 8M0214721 | 20.5" | 15" | LH | PRO |
| 8M0214718 | 20" | 15" | RH | PRO |
| 8M0214719 | 20" | 15" | LH | PRO |
| 8M0214724 | 21.5" | 15" | RH | PRO |
| 8M0214725 | 21.5" | 15" | LH | PRO |
| 8M0214722 | 21" | 15" | RH | PRO |
| 8M0214723 | 21" | 15" | LH | PRO |
| 8M0214728 | 22.5" | 15" | RH | PRO |
| 8M0214729 | 22.5" | 15" | LH | PRO |
| 8M0214726 | 22" | 15" | RH | PRO |
| 8M0214727 | 22" | 15" | LH | PRO |
| 8M0214732 | 23.5" | 15" | RH | PRO |
| 8M0214733 | 23.5" | 15" | LH | PRO |
| 8M0214730 | 23" | 15" | RH | PRO |
| 8M0214731 | 23" | 15" | LH | PRO |
| 8M0214736 | 24.5" | 15" | RH | PRO |
| 8M0214737 | 24.5" | 15" | LH | PRO |
| 8M0214734 | 24" | 15" | RH | PRO |
| 8M0214735 | 24" | 15" | LH | PRO |
| 8M0214740 | 25.5" | 15" | RH | PRO |
| 8M0214741 | 25.5" | 15" | LH | PRO |
| 8M0214738 | 25" | 15" | RH | PRO |
| 8M0214739 | 25" | 15" | LH | PRO |
| 8M0173920 | 26.5" | 15" | RH | PRO |
| 8M0173921 | 26.5" | 15" | LH | PRO |
| 8M0173918 | 26" | 15" | RH | PRO |
| 8M0173919 | 26" | 15" | LH | PRO |
| 8M0173924 | 27.5" | 15" | RH | PRO |
| 8M0173925 | 27.5" | 15" | LH | PRO |
| 8M0173922 | 27" | 15" | RH | PRO |
| 8M0173923 | 27" | 15" | LH | PRO |
